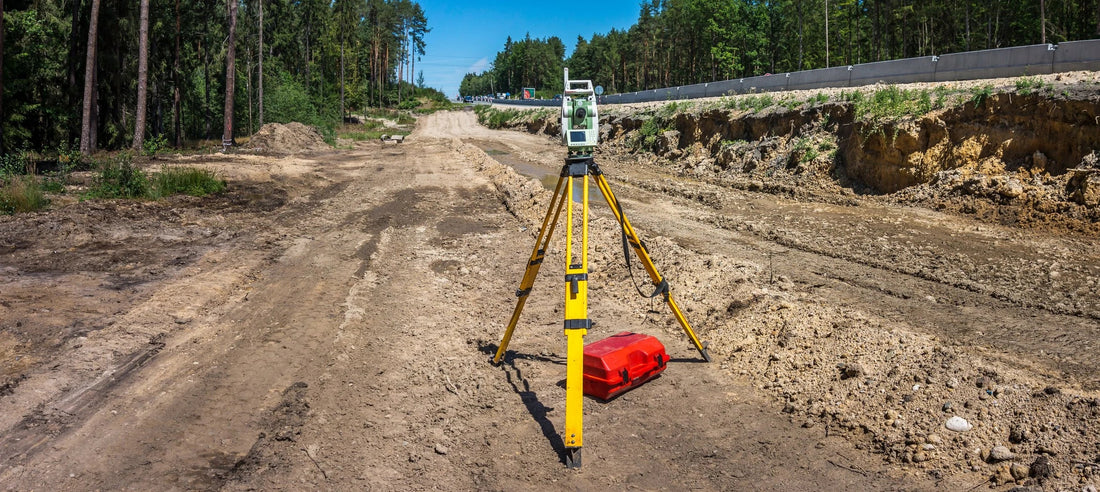

What Is a Total Station Used For? 9 Applications in Surveying and Construction
Share
Ask a surveyor what a total station is used for and the answer is usually "everything." That's close to true. A single instrument handles boundary retracement, topographic mapping, construction layout, as-built checks, and structural monitoring, and it does it in places GNSS can't reach.
This guide walks through nine real-world total station applications, explains what makes the instrument suited to each one, and covers when a total station beats a GNSS rover (and when it doesn't). If you're shopping, our used total station inventory is here, and our total station pricing guide covers what to expect to pay.
What Is a Total Station?
A total station is an optical surveying instrument that measures horizontal angles, vertical angles, and slope distances from a known point to a target. It combines an electronic theodolite (angles), an electronic distance meter or EDM (distances, using an infrared or laser beam to a prism or directly to a surface), and an onboard processor that converts those measurements into 3D coordinates.
Set it up over a known point, sight a second known point to orient it, and every shot you take afterward is a precise coordinate in your project's system. Modern instruments store or transmit the data to a field controller, so there's no field book arithmetic.
There are two main types. Manual total stations are aimed by hand and need a two-person crew. Robotic total stations are motorized, track the prism automatically, and let one person run the job from the pole. For the tradeoffs, see the advantages and disadvantages of a total station.
9 Things a Total Station Is Used For
1. Boundary and cadastral surveys
The classic use. Surveyors locate existing monuments (iron pins, concrete monuments, fence corners), measure between them, and compare the results to the deed and prior surveys to establish or retrace property lines. Total stations dominate here because boundary work demands tight angular accuracy and often happens under tree cover, along fence lines, and next to buildings where GNSS struggles. A 2" or 3" instrument is standard.
2. Topographic surveys
A topo survey maps the shape and features of a site: ground elevations, edges of pavement, utilities, trees, structures, drainage. The crew shoots hundreds or thousands of points and the office turns them into a contour map or 3D surface for design. Robotic instruments shine here because one person can shoot points as fast as they can walk, and reflectorless (DR) mode picks up features you can't put a pole on.
3. Construction stakeout and layout
Stakeout is the reverse of a topo: you take design coordinates from the plans and mark them on the ground. Building corners, column lines, footings, anchor bolts, curb and gutter, utility inverts, and grade stakes all get set with a total station. Construction-focused robots like the Trimble RTS655 are built specifically for this, with software that walks the operator to each design point.
4. As-built surveys and quality control
Once something is built, someone has to verify it's where the plans said it would be. Total stations measure completed foundations, steel, pipe, and pavement and compare them to design tolerances. Reflectorless measurement makes it possible to check a beam or a slab edge without anyone climbing on it. The same data feeds as-built drawings the owner will need for decades.
5. Road, rail, and pipeline alignment
Linear projects live on stationing and offsets. A total station sets centerline, checks superelevation and cross-slope, stakes cut and fill, and verifies grade on pipe runs. Long prism ranges (2,500 m or more on a single prism) mean fewer instrument setups along the corridor.
6. Building and MEP layout
Inside a structure, GNSS is useless. Total stations lay out interior walls, hanger points, sleeves, and penetrations for mechanical, electrical, and plumbing trades directly from the BIM model. Robotic instruments with a tablet controller let one tradesperson lay out an entire floor and are one of the fastest-growing uses of the technology.
7. Deformation and structural monitoring
Dams, bridges, retaining walls, excavation shoring, and buildings near tunneling are monitored for movement by repeatedly measuring to fixed prisms from a stable setup. High-precision 1" or 0.5" instruments detect millimeter-level movement over time. Automated monitoring systems run a robotic total station on a schedule and alert engineers if a threshold is crossed.
8. Volume and earthwork calculations
Stockpiles, borrow pits, and cut/fill on grading jobs are quantified by surveying the surface before and after. A total station in reflectorless mode can shoot a stockpile in minutes, and the office software computes the volume between surfaces. Contractors use this for pay quantities; aggregate producers use it for inventory.
9. Reflectorless measurement of hard-to-reach targets
Direct Reflex (DR) mode lets a total station measure to a surface with no prism at all: a building facade, a cliff face, an overhead power line, a bridge soffit, a tank, a roof edge. This is the go-to method for facade surveys, clearance checks, and any measurement where putting a person on the target is unsafe or impossible. Range depends on the surface, typically 300 to 1,300 m depending on the instrument.
Total Station vs. GNSS: Which Do You Use When?
Most professional crews own both and pick the tool based on the site.
| Condition | Better tool | Why |
|---|---|---|
| Open sky, large area, 1-3 cm accuracy is fine | GNSS rover | Faster over distance, no line of sight needed |
| Tree canopy, urban canyon, indoors | Total station | GNSS loses satellites; total station only needs line of sight |
| Millimeter-level accuracy (control, monitoring, steel) | Total station | Angular and distance precision GNSS can't match |
| Elevations for grading and drainage | Total station | Vertical accuracy is far better than GNSS |
| Measuring things you can't touch | Total station (reflectorless) | GNSS requires the receiver on the point |
| Long corridors with few obstructions | GNSS, with total station for tight spots | Fewer setups |
The instruments also work together. Trimble, Leica, and Topcon controllers switch between a GNSS receiver and a total station in the same job file, so you can shoot the open field with the rover and the wooded corner with the robot. We stock both: used GNSS systems and used total stations.
Which Total Station for Which Use?
- Boundary and control: 1" - 3" robotic (Trimble S5/S6/S7 2" or 3", Topcon GT-1001, Leica TS16)
- Topo and general survey: 2" - 5" robotic with DR
- Construction layout and MEP: 3" - 5" robotic with a layout-focused controller (Trimble RTS series, Topcon GT/LN, Leica iCON)
- Monitoring: 0.5" - 1" instrument, often automated
- Two-person crews on a budget: 3" manual instrument (Leica TS02/TS07, Trimble C3/C5, Nikon XF)
Frequently Asked Questions
What is the main use of a total station?
Measuring angles and distances to establish precise coordinates, most commonly for boundary surveys, topographic mapping, and construction layout.
Is a total station used in construction?
Yes. Construction is the largest market for total stations. They stake out foundations, columns, utilities, roads, and interior MEP layout, and verify as-built positions.
Can a total station measure elevation?
Yes. It measures vertical angle and slope distance and computes the elevation difference, typically to a few millimeters over normal working distances.
What is the range of a total station?
Typically 2,500 - 5,000 m to a prism and 300 - 1,300 m reflectorless, depending on the instrument and the surface.
Do I need a prism to use a total station?
Not for reflectorless (DR) shots to surfaces. For the highest accuracy and for robotic tracking, you use a prism on a pole.
